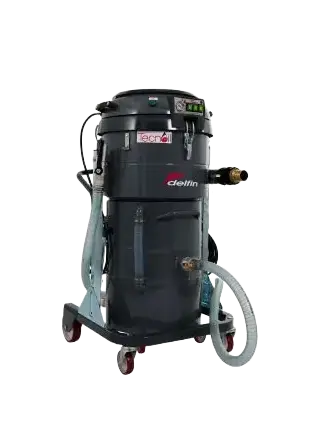

The TC100 MPI vacuum cleaner is a powerful vacuum cleaner equipped with 3 independent single-phase motors, designed specifically for the mechanical industry and maintenance of CNC machine tools. Coolant liquids and emulsions can be suctioned easily, separating off any metal chips or swarfs and allowing the vacuumed liquid to be reused, all at the same time! This means significant savings in terms of money and time spent servicing machinery. 100 litre liquid capacity, 40 litre sieve grid basket and 300micron PPL filter for metal chips and simultaneous suction, filtration and discharge of liquids!
ADVANTAGES
- Tangential suction inlet with integrated separation cyclone
- PPL filter for chips separation
- Floating device to stop the suction when container is full
- Reduced downtime of machine tools
- Submerged pump for the discharge of the sucked liquid
- Grid for chips vacuuming
- Simultaneous operation of liquids vacuuming and discharge
- Possibility of recycling oils and emulsions
- Reduction of disposal costs due to exhausted oils
- Reduction of machineries cleaning times
DATA SHEET
| Index | Unit | TC 100 MPI |
|---|
| Voltage | V - Hz | 230 - 50 1~ |
| Power | kW | 3,45 |
| Max water lift | mmH₂O | 2500 |
| Max air flow | m³/h | 540 |
| Noise level (EN ISO 3744) | dB(A) | 76 |
| Filter Type | | 3D SuperWeb |
| Media - Filtration | | Polypropylene - 20μm |

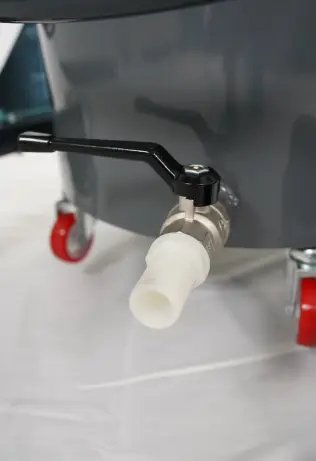

| Discharge system | | |
| Liquids capacity | l | 60 |

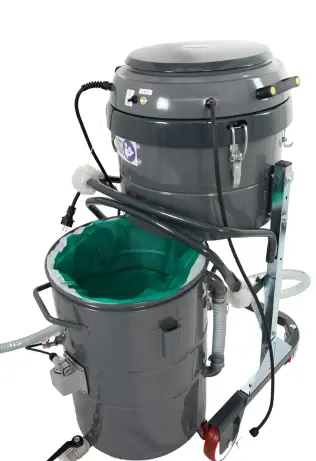

| Solids capacity | l | 40 |
| Discharge speed | l / min | 160 |
| Floating device | | |
| Dimensions | cm | 67x66x125h |
| Weight | kg | 70 |
