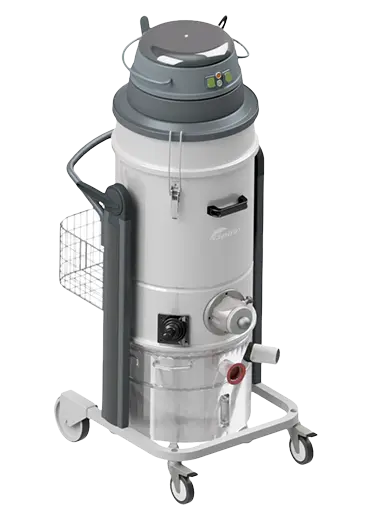

The new ACD INERT vacuum cleaner has been designed to safely vacuum conductive powders in areas not classified where ATEX certification is not required.
The two single-phase bypass motors guarantee a high vacuuming performance for non-continuous applications and less than 3 hours a day. Equipped with two filtration levels as standard to ensure maximum filtration efficiency.
ADVANTAGES
- Stainless steel AISI304 collection tank
- Earth grounding
- Inert liquid bath system for the safe discharge of explosive and conductive metal dust
- Easily removable container for safe disposal of collected material
- Prevents the build-up of the explosive atmosphere inside the vacuum
- High efficiency filtration
- ATEX accessories and non-metallic parts tested
- Vacuum Powerhead Ex tb Dust Tight IP64 Certified
- Neutralization system for reactive dusts with testing of performance EN17348
- Compliant with EN 17348: WET TYPE
DATA SHEET
| Index | Unit | MTL 452 ACD INERT |
|---|
| Voltage | V - Hz | 115/230 - 50/60 1~ |
| Max water lift | mmH₂O | 2.500 |
| Max air flow | m³/h | 360 |
| Suction inlet | mm | 50 |
| Noise level (EN ISO 3744) | dB(A) | 74 |
| Atex zones | | CE ACD EX 1/- |
| Marking | | II 1/-D Ex h IIIC T80°C (Internal) Da/- |
| Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M |
| Cleaning system | | Manual |
| Dimensions | cm | 61x66x133h |
| Weight | kg | 52 |
