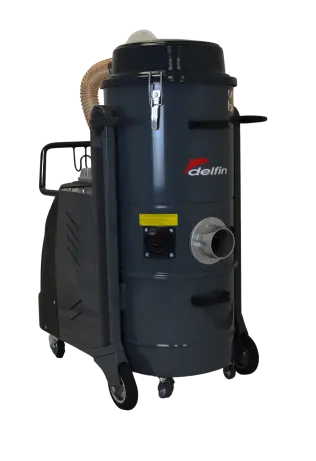

The ATEX 4533 is one of the most compact and powerful Atex industrial vacuums. Compact, silent and safe, it comes from years of experience in the food, pharmaceutical and chemical industries, where it is often used for stationary applications on machinery. A high performance side channel blower guarantees constant and continuous suction also when used in continuous applications and contact with toxic or dangerous dust. High standard filtration efficiency (anti-static Class M polyester filter) with the possibility to add additional HEPA H14 filtration. Also available in non-certified electric version.
ADVANTAGES
- Extractable collection container with optional use of disposable bags
- Pressure relief valve for motor protection
- Low noise level
- Compact and mobile
- Reduced downtime of machine tools
- High filtration efficiency
- Compliant with EN 17348: DRY TYPE
- Side Channel Blower and control switch box ATEX certified category 3GD for Z22 and Z2
DATA SHEET
| Index | Unit | MTL 4533 Z2/22 |
|---|
| Power | kW | 3 |
| Electrical protection | IP | 65 |
| Max water lift | mmH₂O | 3.200/2.700 |
| Max air flow | m³/h | 318 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 69 |
| Marking | | II 3D Ex h IIIC T135°C Dc - II 3G Ex h IIB + H2 T4 Gc |
| Atex zones | | 3D (20 int / 22 ext) 3G (2 int/ 2 ext) |
| Filter Type | | Star |
| Cleaning system | | Manual |
| Capacity | l | 45 |
| Dimensions | cm | 58x93x116h |
| Weight | kg | 85 |
