Vacuuming potentially explosive dusts in zone 22 hazardous areas can create an even more perilous situation inside the industrial vacuum cleaner, where the extracted dust is moved and collected. Zone 20 certification of the interior of the vacuum chamber eliminates this risk.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Integrated filter cleaning system
- Extractable collection container with optional use of disposable bags
- Pressure relief valve for motor protection
- Compact and mobile
- Conceived for fine and hazardous dust suction
- Additional HEPA filter (99,995% on 0,18 micron) included
- Stainless steel AISI304 collection tank
- ATEX certified for Zone 20 inside the chamber and for Zone 22 outside the chamber
DATA SHEET

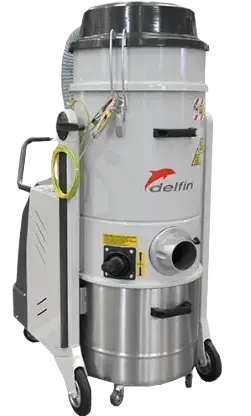

| Index | Unit | MTL 3533 EX1/3D |
|---|
| Atex zones | | ATEX Z20/22 |
| Marking | | Ex II 1/3D Ex h IIIC T160°C Da/Dc |
| Voltage | V - Hz | 400 - 50 3~ |
| Power | kW | 4 |
| Electrical protection | IP | 65 |
| Max water lift | mmH₂O | 2.700 |
| Max air flow | m³/h | 320 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 69 |
| Filter Type | | Star |
| Surface - Diameter | cm²-mm | 20.000 - 420 |
| Material - Efficiency | IEC 60335-2-69 | ANT Polyester - M - 1μm |
| Cleaning system | | Manual |
| Secondary filter | | HEPA |
| Collection tank | | |
| Transport capacity | kg/h | 45 |
| Dimensions | cm | 93x58x116h |
| Weight | kg | 85 |
