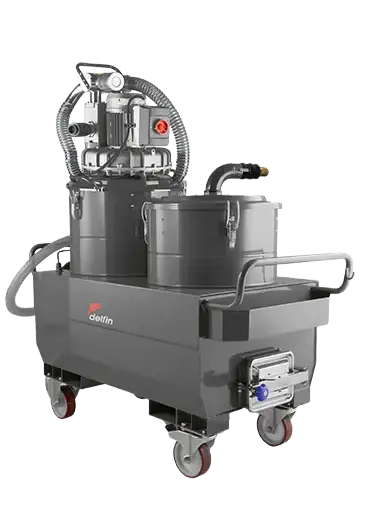

The TC220 MPI vacuum cleaner is a powerful vacuum cleaner equipped with 3 independent single-phase motors, designed specifically for the mechanical industry and maintenance of CNC machine tools. Coolant liquids and emulsions can be easily suctioned, separating off any metal chips or swarfs and allowing the vacuumed liquid to be reused, all at the same time! This means significant savings in terms of money and time spent servicing machinery. 220 litre liquid capacity, 40 litre sieve grid basket for metal chips and simultaneous suction, filtration and discharge of liquids!
An inspection door allows to easily clean the inner part of the vacuum.
ADVANTAGES
- Floating device to stop the suction when container is full
- Reduced downtime of machine tools
- Grid for chips vacuuming
- Reduction of disposal costs due to exhausted oils
- Reduction of machineries cleaning times
- A turnable suction inlet simplifies vacuuming operations
- A window allows to inspect and access the collection tank
DATA SHEET
| Index | Unit | TC 220 IF |
|---|
| Voltage | V - Hz | 400 - 50 3~ |
| Power | kW | 3 |
| Max water lift | mmH₂O | 3000/2700 |
| Max air flow | m³/h | 318 |
| Noise level (EN ISO 3744) | dB(A) | 78 |
| Filter Type | | 3D SuperWeb |
| Media - Filtration | | Polypropylene - 20μm |
| Discharge system | | |
| Liquids capacity | l | 220 |
| Solids capacity | l | 40 |
| Discharge speed | l / min | 200 |
| Floating device | | |
| Dimensions | cm | 145x72x175h |
| Weight | kg | 185 |
