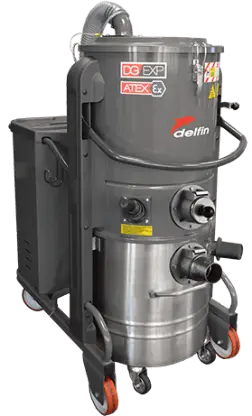

DG EXP PN industrial vacuum cleaners are ideal for sucking up dry dust which, in normal working conditions, can clog the filter and impair the machine’s ability to suction fine dusts (the PN system is the ideal solution for dust from building work, cement factories, surface treatments). The DG EXP PN is equipped with high surface area filter cartridges that are automatically and systematically cleaned by a reverse pulse filter cleaning system, enabling the operator to keep the vacuum cleaner on continuous cycle until the container is completely full.
ADVANTAGES
- Tangential suction inlet with integrated separation cyclone
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Pressure relief valve for motor protection
- Vacuum gauge to detect filter clogging
- High filtration efficiency
- Compliant with EN 17348: DRY TYPE
- Side Channel Blower Ex Dust Tight Certified
DATA SHEET
| Index | Unit | DG EXP PN Z22 |
|---|
| Power | kW | 4 - 5,5 |
| Electrical protection | IP | 65 |
| Max water lift | mmH₂O | 3.200/2.600 - 3.600/3.000 |
| Max air flow | m³/h | 420 - 530 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 70 - 75 |
| Filter Type |
| Cartridge |
| Air load on filter | m³/m²/h | 66 - 74 |
| Cleaning system |
| Automatic PN |
| Transport capacity | kg/h | 100 |
| Dimensions | cm | 66X118X187h |
| Weight | kg | 145 - 180 |
