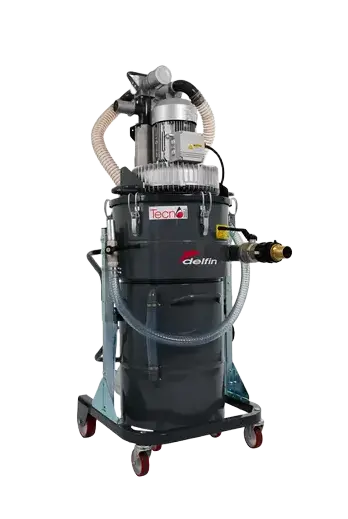

The TC100 IF vacuum cleaner is a powerful three-phase vacuum equipped with a side channel blower, designed specifically for the mechanical industry and maintenance of CNC machine tools. Coolant liquids and emulsions can be suctioned continuously, even 24 hours a day, separating off any metal chips or swarfs and allowing the vacuumed liquid to be reused. This can mean significant savings in terms of money and time spent servicing machinery. 100 litre liquid capacity, 40 litre sieve grid basket for metal chips and rapid discharge of liquid via reversed airflow.
ADVANTAGES
- Compact and mobile
- PPL filter for chips separation
- Save money by recovering and reusing oil and coolant
- Discharge system through reverse flow by means of an hose. No need of discharge pump
- Easily removable container for safe disposal of collected material
- Sturdy vacuum cleaner for intensive use
- High efficiency filtration
- Low noise level
DATA SHEET
| Index | Unit | TC 100 IF |
|---|
| Voltage | V - Hz | 400 - 50 3~ |
| Power | kW | 3 |
| Max water lift | mmH₂O | 3000/2700 |
| Max air flow | m³/h | 318 |
| Noise level (EN ISO 3744) | dB(A) | 78 |
| Filter Type | | 3D SuperWeb |
| Surface - Diameter | cm²-mm | 500 |
| Media - Filtration | | Polypropylene - 20μm |
| Discharge system | | |
| Liquids capacity | l | 60 |
| Solids capacity | l | 40 |
| Discharge speed | l / min | 200 |
| Floating device | | |
| Dimensions | cm | 67x66x135h |
| Weight | kg | 95 |
