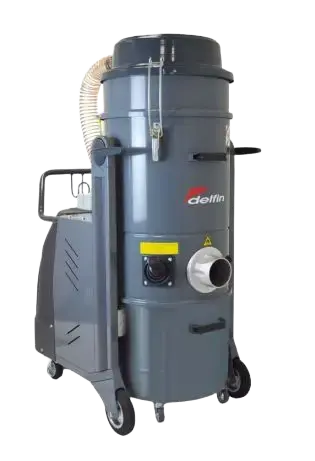

The MTL 4534 - 4535 is an industrial vacuum designed for the extraction of combustible dusts and liquids, with a compact, stable, and easy-to-transport design. Its painted steel construction ensures durability and strength. Equipped with a class M antistatic polyester filter and a manual filter cleaning system, it is ideal for explosion-risk environments, thanks to the Ex tb certified side channel blower and ATEX tested accessories.
ADVANTAGES
- Largest surface filter in its category
- Integrated filter cleaning system
- Complete steel construction
- Pressure relief valve for motor protection
- Vacuum gauge to detect filter clogging
- Easy filter replacement
- Atex certified for Zone 22
- Conceived for fine and hazardous dust suction
- ATEX accessories and non-metallic parts tested
- Compliant with EN 17348: DRY TYPE
- Side Channel Blower Ex Dust Tight Certified
DATA SHEET
| Index | Unit | MTL 4534 Z22 | MTL 4535 Z22 |
|---|
| Power | kW | 3 - 6,5 | 4 |
| Electrical protection | IP | 65 | 65 |
| Max water lift | mmH₂O | 3.200/2.700 | 3.200/2.600 |
| Max air flow | m³/h | 318 | 420 |
| Suction inlet | mm | 80 | 80 |
| Noise level (EN ISO 3744) | dB(A) | 69 | 69 |
| Use zone | | 22 ATEX | 22 ATEX |
| Marking | | II 3D Ex h tc IIIC T80°C (Int)/ T165°C (Ext) Dc | II 3D Ex h tc IIIC T80°C (Int)/ T165°C (Ext) Dc |
| Atex zones | | 3D (20 int/22 ext) | 3D (20 int/22 ext) |
| Filter Type | | Star | Star |
| Cleaning system | | Manual | Manual |
| Capacity | l | 45 | 45 |
| Dimensions | cm | 58x93x116h | 58x93x116h |
| Weight | kg | 85 | 90 |
