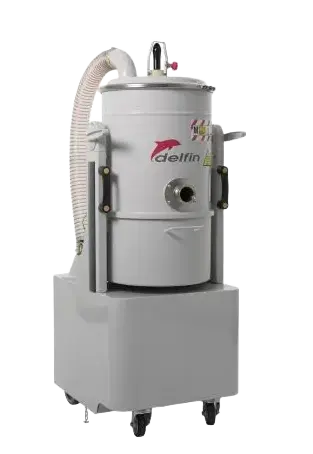

The MTL 20.18 is a compact and silent industrial vacuum designed for extracting combustible dust in hazardous environments. Equipped with a H14 absolute filter and an ergonomic cleaning system, it ensures optimal filtration. Its steel construction with a quick-release container and Ex tb certified blower make it ideal for applications in ATEX Zone 22 environments. Safe, powerful, and versatile, it is perfect for onboard machine cleaning and the removal of industrial dust. This line-up is combined with the on-machine vacuum solutions for packaging applications.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Low noise level
- Compact, silent, and flexible vacuum cleaner, ideal for suction on-board of machinery
- Star primary filter with integrated ergonomic cleaning system
- Optional H14 absolute filter for air blowing safety
- Compliant with EN 17348: DRY TYPE
DATA SHEET
| Index | Unit | PHARMA 20.18 Z22 |
|---|
| Power | kW | 2,2 |
| Max water lift | mmH₂O | 3.000 |
| Max air flow | m³/h | 270 |
| Suction inlet | mm | Clamp ø50 AISI304 |
| Noise level (EN ISO 3744) | dB(A) | 70 |
| Use zone | | 22 ATEX |
| Marking | | II 3D Ex h tc IIIC T80°C (int) / T165°C (ext) Dc |
| Filter Type | | Star |
| Surface - Diameter | cm²-mm | 12.000 - 360 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M |
| Cleaning system | | Manual |
| Capacity | l | 22 |
| Dimensions | cm | 70x51x129h |
| Weight | kg | 75 |
