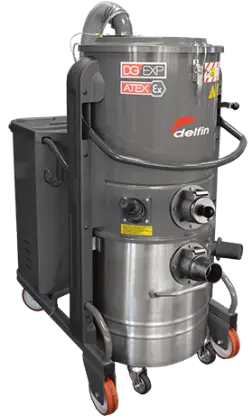

High surface area antistatic filtration with handy manual filter cleaning system built in, grounding and powerful side channel blower.
All you need for safe vacuuming dealing with explosive dusts.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Foam filter for protection of motors from liquid mist
- High filtration efficiency
- Atex certified for Zone 22
- Conceived for fine and hazardous dust suction
- Earth grounding
- Inert liquid bath system for the safe discharge of explosive and conductive metal dust
- Easily removable container for safe disposal of collected material
- Prevents the build-up of the explosive atmosphere inside the vacuum
DATA SHEET
| Index | Unit | EXP 70 INERT |
|---|
| Atex zones |
| ATEX Z22 |
| Marking |
| Ex II 3D Ex tc IIIB T135°C X Dc |
| Voltage | V - Hz | 400 - 50 3~ |
| Power | kW | 4 - 8,4 |
| Max water lift | mmH₂O | 3.200 - 2.600 |
| Max air flow | m³/h | 420 |
| Suction inlet | mm | 50 |
| Noise level (EN ISO 3744) | dB(A) | 72 |
| Filter Type |
| Star |
| Surface - Diameter | cm²-mm | 30.000 - 500 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M |
| Capacity | l | 44 |
| Dimensions | cm | 66x118x145h |
| Weight | kg | 140 |
