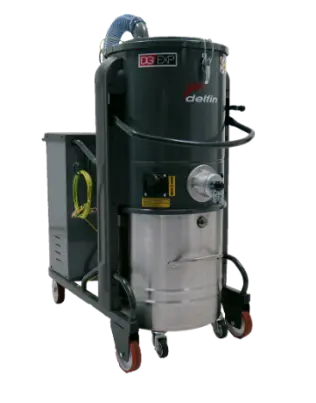

The DG 50IECEX wheeled industrial vacuum cleaner is designed for dust extraction in potentially explosive atmospheres. Thanks to its powerful side channel turbine (4kW of power), it can effortlessly remove any type of material with extreme ease and safety.
Integrated manual filter shaker, stainless steel release container, large antistatic polyester filter and absolute filter make this vacuum cleaner the ideal machine for vacuuming large quantities of solids and dust.
Thanks to the prestigious IECEx certification on the entire machine and components such as the electric motor, electrical box and cable glands ensures safe use in potentially explosive areas.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Largest surface filter in its category
- Pressure relief valve for motor protection
- Compact and mobile
- Long lasting
- Very suitable for the suction of large quantities of material
- Easily removable container for safe disposal of collected material
- High efficiency filtration
- Low noise level
- Suitable for continuous use 24/7
- IECEX Certified
DATA SHEET
| Index | Unit | DG 50 IECEX |
|---|
| Voltage | V - Hz | 400 - 50 |
| Power | kW | 4 |
| Max water lift | mmH₂O | 2.300 |
| Max air flow | m³/h | 320 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 72 |
| Filter Type | | Star |
| Surface - Diameter | cm²-mm | 30.000 - 500 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M |
| Air load on filter | m³/m²/h | 140 |
| Cleaning system | | Manual |
| Discharge system | | |
| Capacity | l | 100 |
| Dimensions | cm | 60X103X170 |
| Weight | kg | 145 |
