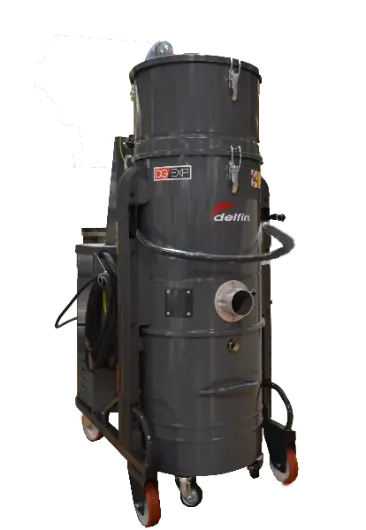

DG EXP PN industrial vacuum cleaners are ideal for sucking up dry dust which, in normal working conditions, can clog the filter and impair the machine’s ability to suction fine dusts (the PN system is the ideal solution for dust from building work, cement factories, surface treatments). The DG EXP PN is equipped with high surface area filter cartridges that are automatically and systematically cleaned by a reverse pulse filter cleaning system, enabling the operator to keep the vacuum cleaner on continuous cycle until the container is completely full.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Tangential suction inlet with integrated separation cyclone
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Pressure relief valve for motor protection
- Vacuum gauge to detect filter clogging
- Reduced downtime of machine tools
- High filtration efficiency
- Large surface antistatic filter
- Possibility of integration on other vacuum cleaners
- Full customization for specific needs
- Integrated automatic filter cleaning system
DATA SHEET
| Index | Unit | DG 50 EXP PN |
|---|
| Voltage | V - Hz | 400 - 50 3~ |
| Power | kW | 4 |
| Electrical protection | IP | 65 |
| Max water lift | mmH₂O | 3200/2600 |
| Max air flow | m³/h | 420 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 70 |
| Filter Type | | Cartridge |
| Surface - Diameter | cm²-mm | 57000 |
| Material - Efficiency | | ANT Polyester - M - 1μm |
| Air load on filter | m³/m²/h | 74 |
| Cleaning system | | Automatic PN |
| Discharge system | | |
| Transport capacity | kg/h | 100 |
| Dimensions | cm | 66x118x187h |
| Weight | kg | 145 |
