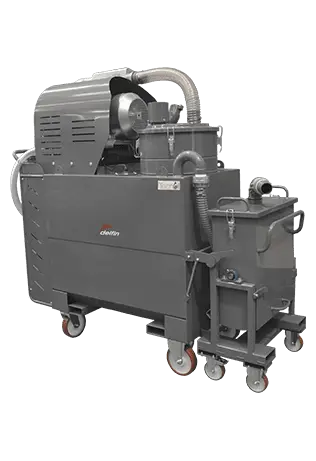

The TC600 is the most powerful vacuum cleaner in the range for recycling and separating oil from chips. Powerful turbine, 600 litre liquid capacity and 75 litres for chips. Forklift ready for easier handling, it is the ideal solution for sucking up oils and emulsions from CNC machine tools, also when mixed with dust or mud. Thanks to this vacuum cleaner, the problem of machine tool maintenance is a thing of the past.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Complete steel construction
- Pressure relief valve for motor protection
- Star-triangle switchboard
- PPL filter for chips separation
- Foam filter for protection of motors from liquid mist
- Discharge hose for liquids
- Saving while recovering, filtrating and reusing cutting oil and emulsionNuovo testo
- Suction from machine tools of oils and coolants mixed with metal chips
- Discharge pump included
DATA SHEET
| Index | Unit | TC 600 |
|---|
| Voltage | V - Hz | 400 - 50 3~ |
| Power | kW | 11 |
| Max water lift | mmH₂O | 5100 |
| Max air flow | m³/h | 520 |
| Noise level (EN ISO 3744) | dB(A) | 78 |
| Filter Type | | 3D SuperWeb |
| Surface - Diameter | cm²-mm | 19200- 325 |
| Media - Filtration | | Polypropylene - 20μm |
| Discharge system | | |
| Liquids capacity | l | 610 |
| Solids capacity | l | 75 |
| Discharge speed | l / min | 300 |
| Level detector for automatic motor cut off | | |
| Floating device | | |
| Dimensions | cm | 195x72x195h |
| Weight | kg | 405 |
