The risks of explosion are also present in working environments that are not classified as explosive atmospheres where operators treat combustible dust on a daily basis.

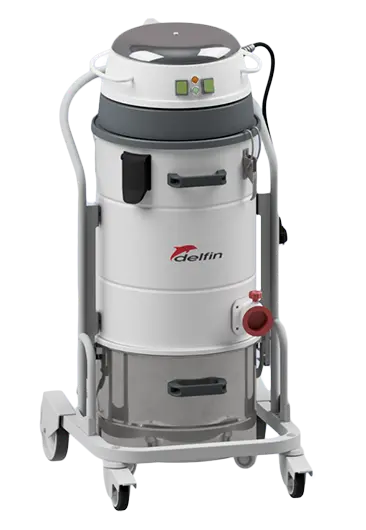

With two 2.3 Kw bypass motors, the compact MTL 202 ACD is the ideal solution for cleaning and maintenance, focusing on worker safety.
The integrated Dustop filter cleaning system ensures the maintenance of high filtration performance, essential for the protection of the engine and the prevention of potential explosion hazards. The release container can be replaced by a disposable bag in the Endless Bag version for safe and efficient collection of the aspirated material.
ADVANTAGES
- Largest surface filter in its category
- Tangential suction inlet with integrated separation cyclone
- Complete steel construction
- Two powerful by pass motors with independent cooling
- Compact and mobile
- Easy filter replacement
- Stainless steel AISI304 collection tank
- Motor with very long service life
- Dustop filter cleaning system
- Adjustable height to facilitate transport on vehicles
- Endless Bag
- Vacuum powerhead Ex tb Dust Tight IP64 certified
- ATEX accessories and non-metallic parts tested
- Compliant with EN 17348: DRY TYPE
DATA SHEET
| Index | Unit | MTL 202 |
|---|
| Power | kW | 2,3 |
| Max water lift | mmH₂O | 2500 |
| Max air flow | m³/h | 360 |
| Suction inlet | mm | 50 |
| Noise level (EN ISO 3744) | dB(A) | 74 |
| Marking |
| II 1/-D Ex h IIIC T80°C (Internal) Da/- |
| Atex zones |
| ACD EX 1/- D |
| Filter Type |
| Cartridge |
| Collection tank |
|
|
| Capacity | l | 20 |
| Dimensions | cm | 52x63x104h |
| Weight | kg | 35 |
