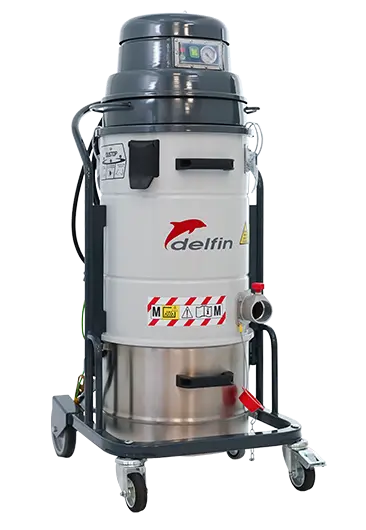

The MTL 201 model with ATEX double certification for internal zone 20 and external zone 22 has been specifically designed to ensure the safe vacuuming of combustible dust in working environments at medium explosion risk.
In particular, the ATEX certification for internal zone 20 ensures the prevention of the high risk of explosion due to the accumulation inside the vacuum cleaner of the vacuumed combustible material.
The single-phase bypass motor that makes it suitable for non-continuous applications and for less than 3 hours a day, is protected by the Ex tb certified safety enclosure.
ADVANTAGES
- Tangential suction inlet with integrated separation cyclone
- Complete steel construction
- Compact and mobile
- Easy filter replacement
- Additional HEPA filter (99,995% on 0,18 micron) included
- Stainless steel AISI304 collection tank
- Dustop filter cleaning system
- Vacuum powerhead Ex tb Dust Tight IP64 certified
- ATEX accessories and non-metallic parts tested
- Compliant with EN 17348: DRY TYPE
DATA SHEET
| Index | Unit | MTL 201 1/3D |
|---|
| Voltage | V - Hz | 230 - 50/60 1~ |
| Power | kW | 1,1 |
| Max water lift | mmH₂O | 2.500 |
| Max air flow | m³/h | 180 |
| Suction inlet | mm | 50 |
| Noise level (EN ISO 3744) | dB(A) | 74 |
| Marking | | II 1/3D Ex h tb IIIC T80°C (Int) /T95°C (ext) Da/Dc |
| Atex zones | | |
| Filter Type | | Cartridge |
| Surface - Diameter | cm²-mm | 30.000 - 360 |
| Material - Efficiency | | Polyester - ANT M |
| Cleaning system | | Dustop |
| Capacity | l | 20 |
| Dimensions | cm | 52x63x112h |
| Weight | kg | 32 |
