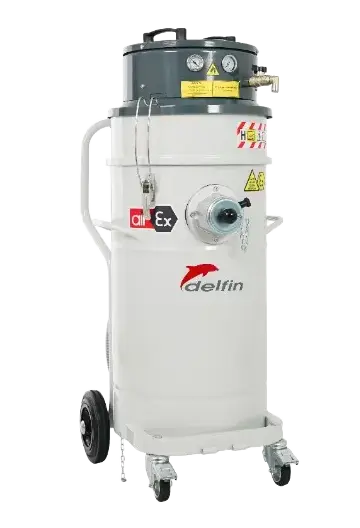

Compact and easy to transport, the 802 WD AIREX vacuum cleaner, certified by external part, guarantees the safe vaccum of powders and liquids in areas at medium risk of explosion.
Maintenance-free compressed air supply allows you to operate in working environments without electricity or where it is not recommended to use it.
Available with 7 or 14 nozzle venturi units.
ADVANTAGES
- Vacuum gauge to detect filter clogging
- Compact and mobile
- Easy filter replacement
- Floating device to stop the suction when container is full
- Discharge hose for liquids
- Earth grounding
- Powerful suction thanks to a multi-nozzle venturi unit
DATA SHEET
| Index | Unit | 802 WD AIREX 7V 1/3D | 802 WD AIREX 14V 1/3D |
|---|
| Atex zones | | ATEX Z20/21 Z1-2 | ATEX Z20/21 Z1-2 |
| Max water lift | mmH₂O | 3700 | 3700 |
| Max air flow | m³/h | 150 | 300 |
| Suction inlet | mm | 80 | 80 |
| Noise level (EN ISO 3744) | dB(A) | 68 | 68 |
| Marking | | II 1/3D Ex h IIIC T80°C Da/Dc | II 1/3D Ex h IIIC T80°C Da/Dc |
| Filter Type | | Bag | Bag |
| Surface - Diameter | cm²-mm | 8.000 - 420 | 8.000 - 420 |
| Material - Efficiency | IEC 60335-2-69 | ANT Polyester - M - 1μm | ANT Polyester - M - 1μm |
| Secondary filter | | HEPA | |
| Transport capacity | kg/h | 80 | 80 |
| Dimensions | cm | 62x53x108h | 62x53x108h |
| Weight | kg | 36 | 36 |
| Air supply | nlt / min | | 1458 |
| Air supply pressure | bar | | 6 |
| Ø Air supply hose | mm | | 12 |
