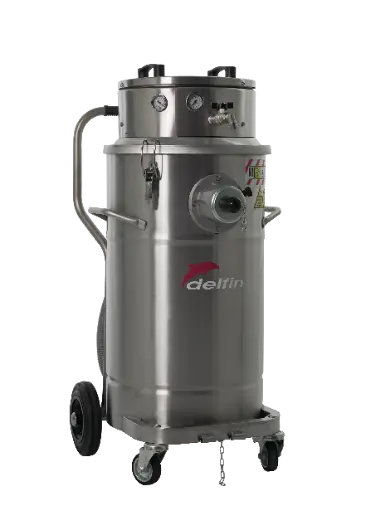

Designed and certified by an external part to operate in areas with a high risk of explosion, it is ideal for the vacuuming of liquids, dust and gas.
The structure entirely made of stainless steel AISI304, combined with the equipment of antistatic filters of class M and the HEPA filter as standard allow you to carry out the cleaning and maintenance activities in total safety. Available with 7 or 14 nozzle venturi units.
ADVANTAGES
- Vacuum gauge to detect filter clogging
- Compact and mobile
- Easy filter replacement
- Floating device to stop the suction when container is full
- Discharge hose for liquids
- Stainless steel AISI304 collection tank
- Earth grounding
- Powerful suction thanks to a multi-nozzle venturi unit
DATA SHEET
| Index | Unit | 802 WD AIREX 7V 1/2D-2/2G | 802 WD AIREX 14V 1/2D - 2/2G |
|---|
| Atex zones | | CE EX 1/2D | CE EX 1/2D |
| Max water lift | mmH₂O | 3700 | 3700 |
| Max air flow | m³/h | 150 | 300 |
| Suction inlet | mm | 80 | 80 |
| Noise level (EN ISO 3744) | dB(A) | 68 | 68 |
| Marking | | II 1/2D Ex h IIIC T85° Da/Db - II 2/2G Ex h IIB T6 Gb/Gb | II 1/2D Ex h IIIC T85° Da/Db - II 2/2G Ex h IIB T6 Gb/Gb |
| Filter Type | | Bag | Bag |
| Surface - Diameter | cm²-mm | 8.000 - 420 | 8.000 - 420 |
| Material - Efficiency | IEC 60335-2-69 | ANT Polyester - M - 1μm | ANT Polyester - M - 1μm |
| Secondary filter | | HEPA | HEPA |
| Transport capacity | kg/h | 80 | 80 |
| Dimensions | cm | 62x53x108h | 62x53x108h |
| Weight | kg | 36 | 36 |
