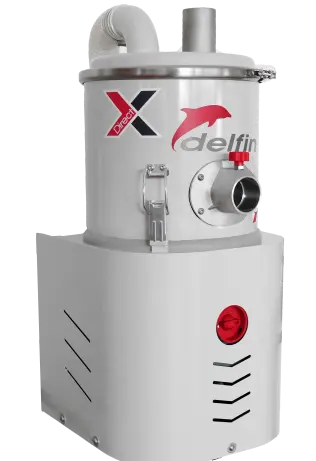

The fixed extraction unit for machinery is designed for direct extraction of dust and fumes during production. With a compact and vertical construction, it is made of steel to ensure robustness and long-lasting durability. The M-class filter with manual cleaning system and H14 ensures effective dust separation. Equipped with a maintenance-free motor and modularity, it is ideal for 24/7 applications and integration into OEM machinery and production lines. The side channel blower and Ex-certified control box provide safety in environments with explosive dust risks. An excellent solution for continuous and efficient extraction. This line-up is combined with the on-machine vacuum solutions in packaging
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Integrated filter cleaning system
- Complete steel construction
- Pressure relief valve for motor protection
- Low noise level
- Easy filter replacement
- Reduced downtime of machine tools
- Possibility of integration on other vacuum cleaners
- Modularity is guaranteed to fulfil the client's needs
- Full customization for specific needs
- Long lasting
- ATEX-certified Z22
DATA SHEET
| Index | Unit | DBFV 05 Z22 | DBFV 10 Z22 | DBFV 20 Z22 | DBFV 30 Z22 |
|---|
| Power | kW | 0,4 | 0,85 - 0,75 | 2,2 - 4,6 | 2,2 - 4,6 |
| Electrical protection | IP | 55/F | 65 | 65 | 65 |
| Max water lift | mmH₂O | 1500 | 2.000 | 3.000 | 2.600 |
| Max air flow | m³/h | 100 | 150 | 270 | 318 |
| Suction inlet | mm | 50 | 50 | 50 | 50 |
| Noise level (EN ISO 3744) | dB(A) | 65 | 69 | 69 | 70 |
| Marking | | II 3D Ex h tc IIIC T80°C (int) / T165°C (ext) Dc | Ex II3D Ex IIIC T125°C DC | II 3D Ex h tc IIIC T80°C (Int)/ T165°C (Ext) Dc | II 3D Ex h tc IIIC T80°C (Int)/ T165°C (Ext) Dc |
| Atex zones | | 3D (20 int/22 ext) | 3D (20 int/22 ext) | 3D (20 int/22 ext) | 3D (20 int/22 ext) |
| Filter Type | | Bag | Bag | Star | Star |
| Transport capacity | kg/h | 15 | 15 | 25 | 25 |
| Dimensions | cm | 50x33x73h | 50x33x73h | 54x55x103h | 54x55x103h |
| Weight | kg | 30 | 35 | 45 | 60 |
| Cleaning system | | | | Manual | Manual |
