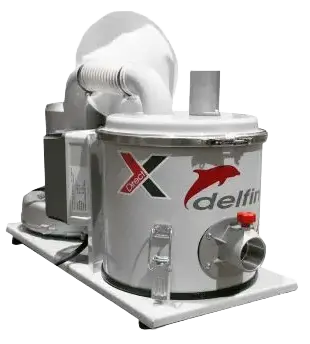

The DBF vacuum cleaner was created to deal effectively with the constant recovery of processing waste from diverse types of industries: from the packaging industry, to the food industry and the paper processing industry. Due to its compact and modular design, the DBF vacuum cleaner can be easily integrated into production line machinery, without taking up space.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Largest surface filter in its category
- Pressure relief valve for motor protection
- Low noise level
- Easy filter replacement
- Reduced downtime of machine tools
- Possibility of integration on other vacuum cleaners
- Modularity is guaranteed to fulfil the client's needs
- Full customization for specific needs
- Long lasting
- Reduction of machineries downtime
DATA SHEET
| Index | Unit | DBF 05 | DBF 10 | DBF 20 | DBF 30 |
|---|
| Voltage | V - Hz | 400 - 50 3~ | 400 - 50 | 400 - 50 | 400 - 50 3~ |
| Power | kW | 0,4 - 1,8 | 0,85 | 1,8 | 2,2 |
| Electrical protection | IP | 65 | 55/F | 55/F | 65 |
| Max water lift | mmH₂O | 1.500 | 2.000 | 3000 | |
| Max air flow | m³/h | 100 | 150 | 270 | |
| Suction inlet | mm | 50 | 50 | 50 | |
| Noise level (EN ISO 3744) | dB(A) | 65 | 70 | 70 | |
| Filter Type | | Bag | Bag | Star | Star |
| Surface - Diameter | cm²-mm | 2.000 - 280 | 2.000 - 280 | 8.000 - 360 | 8.000 - 360 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - M PTFE | Polyester - M PTFE | Polyester - ANT M | Polyester - ANT M |
| Capacity | l | 15 | 15 | 25 | 25 |
| Dimensions | cm | 75x34x42h | 75x34x42h | 4x44x67h | 84x44x67h |
| Weight | kg | 30 | 35 | 40 | 40 |
| Cleaning system | | | | Manual | Manual |
