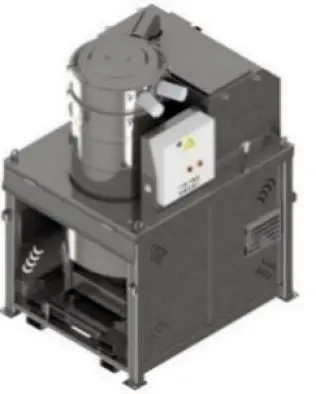

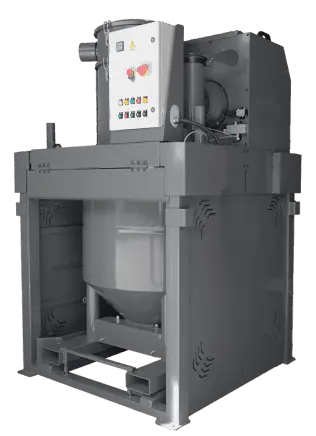

High performance mobile industrial vacuum cleaner with lobe pump mounted on a removable container.

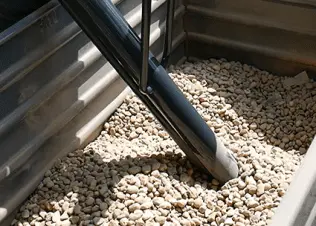

Its exceptional suction performance makes it ideal for continuous, heavy duty use in working conditions typical of heavy industry where there are large quantities of material to be vacuumed,
The filtering system comprises a star filter and polyester safety cartridge to protect the pump.
Automatic filter cleaning is carried out by a Self Clean shaker filter and actuated by the on board compressor.

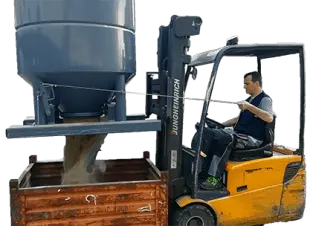

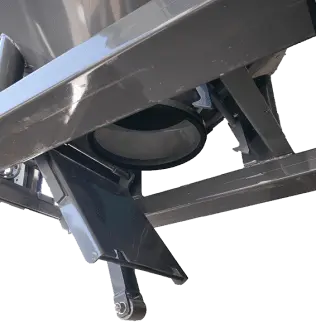

The collection container can be removed by pneumatically lifting the unit and emptied from the bottom via a large tilting door with lever. It closes automatically when the container is lowered to the ground.
Large inspection doors allow easy access to the motor compartment, while eyebolts make it easy to handle the unit by forklift.
ADVANTAGES
- Integrated automatic filter cleaning system
- Sturdy vacuum cleaner for intensive use
- Powerful lobe pump with electric motor
- High performances and long-lasting equipment
- High efficiency filtration
- Detachable container with fork lift intakes which make it is easy to handle
- Discharge system by means of a valve
- Great autonomy of the system
DATA SHEET
| Index | Unit | COMPACT 30 TANK |
|---|
| Power | kW | 30 |
| Electrical protection | IP | 55 |
| Max water lift | mmH₂O | 5.000 |
| Max air flow | m³/h | 1.700 |
| Suction inlet | mm | 127 |
| Filter Type | | Star |
| Cleaning system | | Automatic |
| Secondary filter | | Cartridge |
| Transport capacity | kg/h | 1.000 |
| Dimensions | cm | 196x163x272h |
| Weight | kg | 1.900 |
