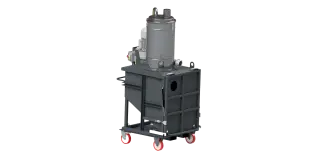

This system is ideal for applications involving large quantities of material, thanks to its industrial-grade construction, high durability, and easy maintenance. Made entirely of painted steel, it offers robustness and long-lasting resistance. The manual filter cleaning system ensures efficient management. The compact design and front material discharge make it practical and versatile, with the added convenience of being easily moved using a forklift.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Integrated filter cleaning system
- Complete steel construction
- Pressure relief valve for motor protection
- Three powerful by pass motors with independent cooling
- Compact and mobile
- Modularity is guaranteed to fulfil the client's needs
- Very suitable for the suction of large quantities of material
- Complete, quick and safe discharge
- Forklift intakes as standard
- Compact design and integrated turbine
- Safe frontal discharge system
- Vacuum unit easily detachable from container filter
DATA SHEET
| Index | Unit | C600 T125 |
|---|
| Voltage | V - Hz | 400 - 50 3~ |
| Power | kW | 12,5 |
| Max water lift | mmH₂O | 4.000 |
| Max air flow | m³/h | 1.100 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 75 |
| Filter Type | | Star |
| Surface - Diameter | cm²-mm | 49.000 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M |
| Air load on filter | m³/m²/h | 225 |
| Cleaning system | | Manual |
| Discharge system | | |
| Capacity | l | 600 |
| Dimensions | cm | 220x100x220h |
| Weight | kg | 680 |
