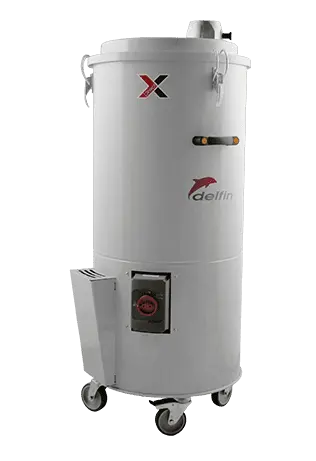

The AS series extractors are designed for the suction of offcuts and production waste deriving from production cycles and packaging machinery. The vacuumed scraps are contained and compacted in a nylon bag, which filters out any dust and allows waste to be removed quickly and easily. Built-in silencer and window for monitoring the fullness of the bag.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Low noise level
- Compact and mobile
- Easy filter replacement
- Possibility of integration on other vacuum cleaners
- Conceived for packaging lines scraps and wastes suction
- Tank provided with large capacity nylon filtering bag
- Full customization for specific needs
DATA SHEET
| Index | Unit | AS 30 |
|---|
| Voltage | V - Hz | 400 - 50 |
| Power | kW | 2,2 |
| Electrical protection | IP | 55 |
| Max water lift | mmH₂O | 2200 |
| Max air flow | m³/h | 318 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 69 |
| Filter Type | | Bag |
| Material - Efficiency | IEC 60335-2-69 | Nylon - L |
| Capacity | lt | 130 |
| Dimensions | cm | 59x55x132h |
| Weight | kg | 75 |
