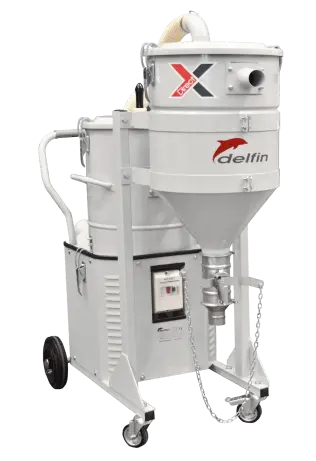

Flux recovery units are the ideal tool for recycling flux used in submerged arc welding operations.
Made up of two units, an aspirator and hopper, it is fully configurable and adjustable according to needs. The units, which are built entirely out of steel, can be installed on the submerged arc welding system separately or together. They can be mounted on wheels to make them easy to transport.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Largest surface filter in its category
- Complete steel construction
- Low noise level
- Conceived for welding flux suction
- Modularity is guaranteed to fulfil the client's needs
- Flux recovery vacuum for arc welding machines
DATA SHEET
| Index | Unit | AF 20 MOBILE | AF 30 MOBILE |
|---|
| Voltage | V - Hz | 400 - 50 | 400 - 50 |
| Power | kW | 1,8 | 2,2 |
| Max water lift | mmH₂O | 2300 | 3000 |
| Max air flow | m³/h | 250 | 300 |
| Suction inlet | mm | 50 | 50 |
| Butterfly discharge valve | mm | 80 | 80 |
| Hopper | mm | 360 - 450 | 360 - 450 |
| Filter Type | | Cartridge | Cartridge |
| Surface - Diameter | cm²-mm | 12.000 - 360 | 12.000 - 360 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - M | Polyester - M |
| Cleaning system | | Manual | Manual |
| Capacity | lt | 50 - 80 | 50 - 80 |
| Dimensions | cm | 43x50x102h | 43x50x102h |
| Noise level (EN ISO 3744) | dB(A) | | 70 |
